Simple tool holder female rail

Simple Tool Holder Female Rail

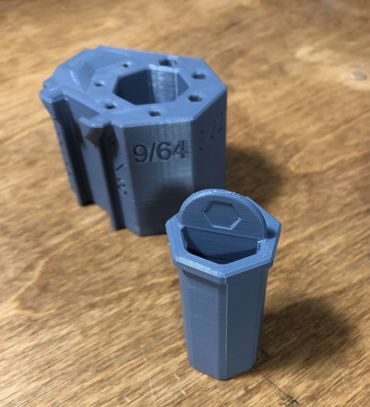

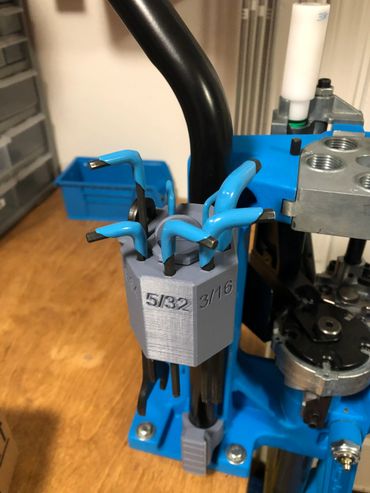

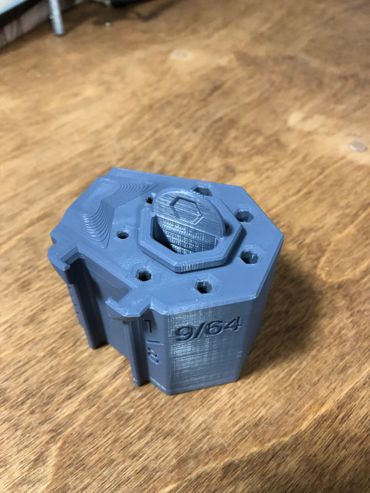

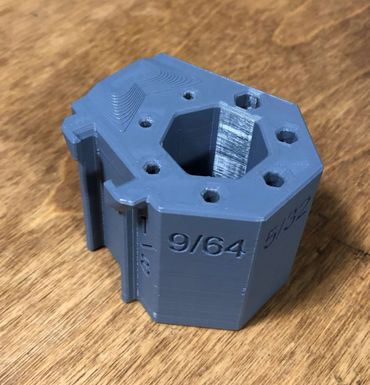

This tool holder was designed to be simple and compact.  It holds all the required allen wrenches for servicing a Dillon XL650.  It was printed at .16MM layer height with a 20% infill.  I used HATCHBOX Grey PLA filament.  The cup was made to hold screws and parts removed during servicing.  It mounts to any of the male rail mounts and I typically move it to the wall mount when not in use.  I redesigned the allen wrench sizes multiple times to try and get them to fit loose enough for easy removal but allow them to still be hard indexed.  I ended up printing with tighter dimensions and then heating each one up with a heat gun and fitting them in the holder while hot.  This gave me the fit i was looking for.  Prints right side up with no supports.  See it on Thingiverse!

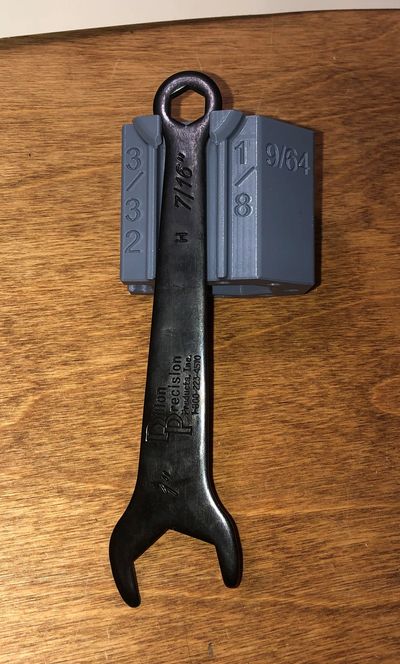

Dillon Bench Wrench Holder

Dillon Bench Wrench Holder

Downloads

Simple AllenSTL (zip)

Download

Simple AllenF3D (zip)

Download

Simple Allen Cup STL (zip)

Download

Simple Allen Cup F3D (zip)

Download
