Picatinny rail for Dillon precision xl650

Male Picatinny MIL-STD-1913 Rail for Dillon Precision XL650 Casefeeder Support

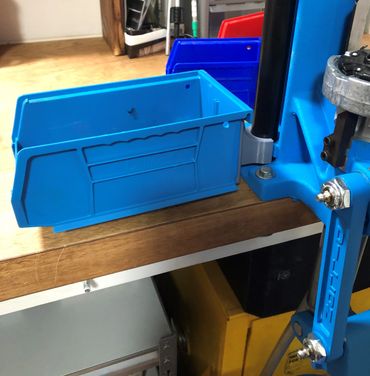

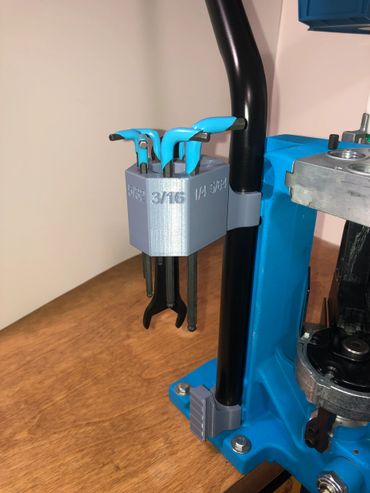

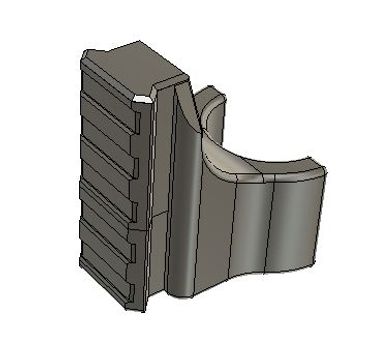

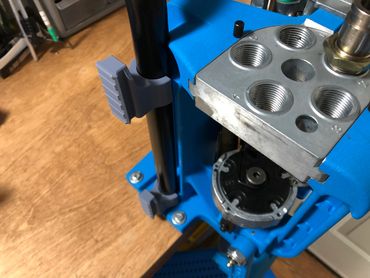

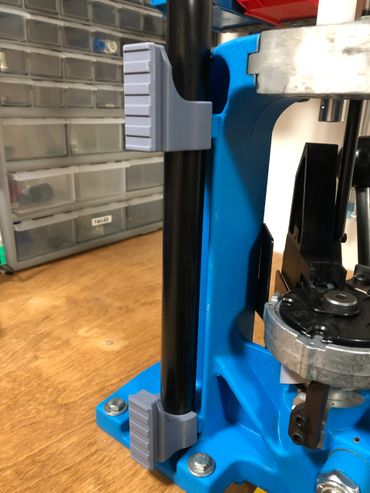

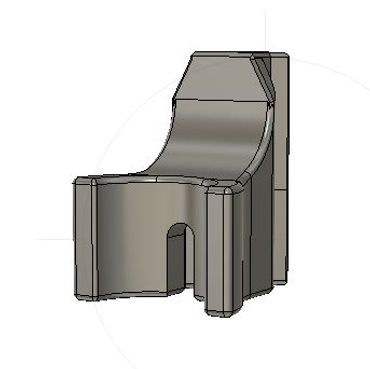

This part replaces the half moon shaped spacer on the casefeed support tubing.  It is slotted to allow the 1/4" factory bolt to be re-used.  It allows for multiple accessories and tool holders to be used.  I replaced both the upper and lower Dillon spacers with these.  I use it to hold tools when needed and Dillon/AKRO Bins for bullet holders when loading using my AKRO Bin mounts.

I Printed these in HatchBox Black and Gray PLA with the slot facing down and one support for the bolt slot.  About 50% infill is plenty strong enough.  See it on Thingiverse!

Downloads

Pic Mount on DillonV1STL (zip)

Download

Pic Mount on DillonV1F3D (zip)

Download
